Application:
Used for drawing and conveying water oil and powder in factory,agrilculture, engineering.
Suitable for high strength working environment like suction and discharge for sand
Characteristics:

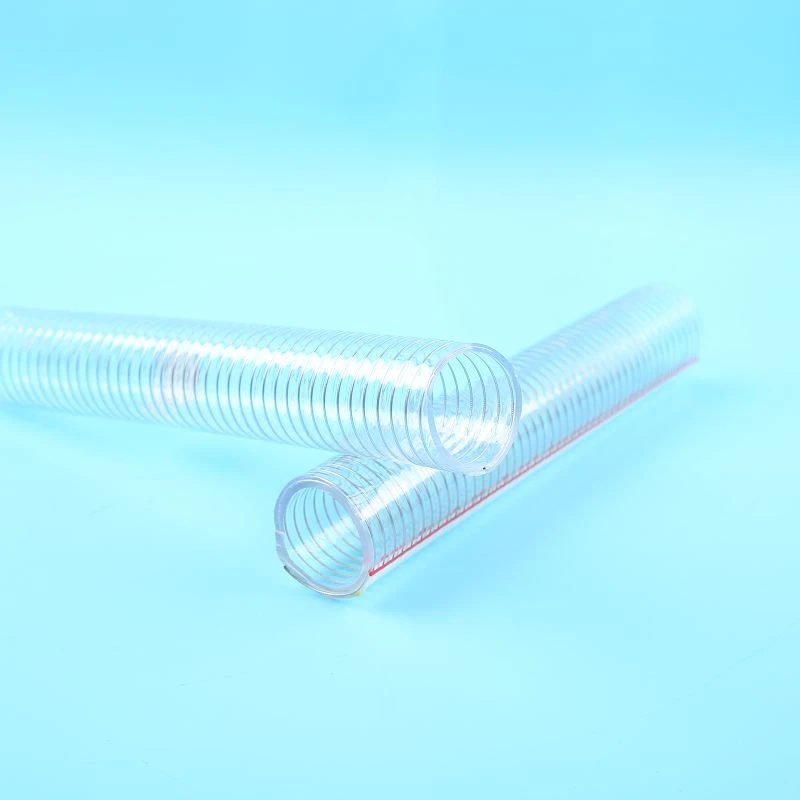

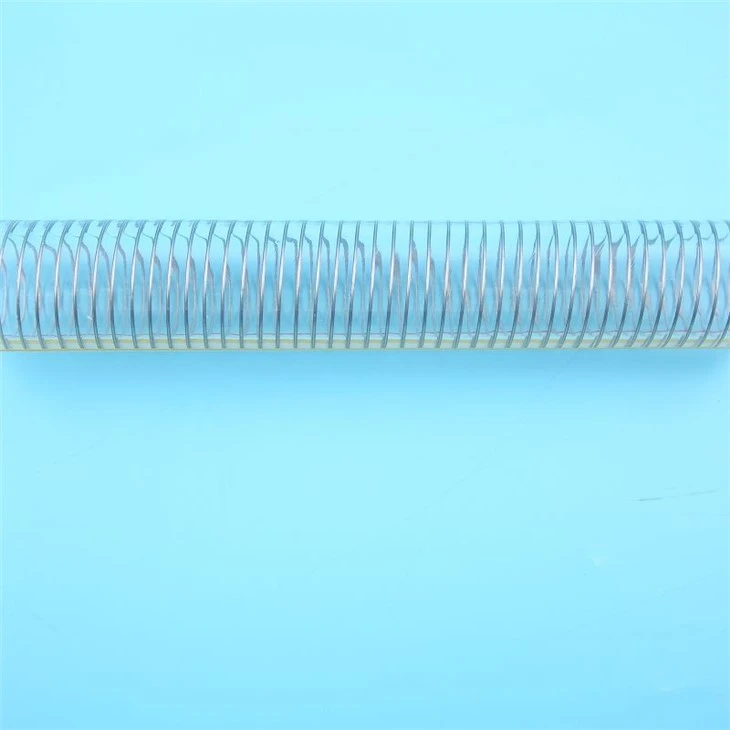

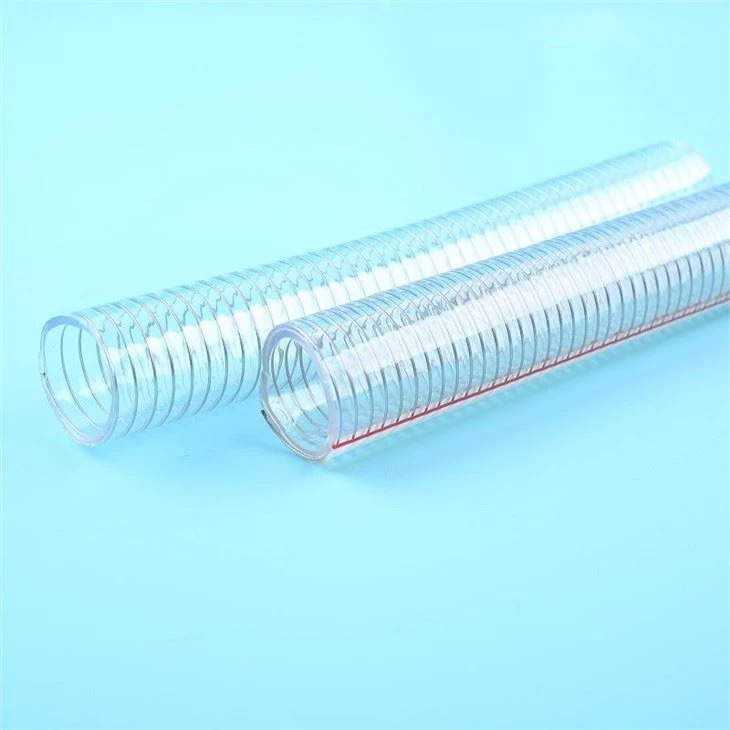

Spiral steel wire reinforced incorporated within the wall of flexible PVC tubing Good adaptability to hard weather condition and minus pressure,small bending radius,anti-abrasion
Working temperature:-5℃ to +65℃
High temperature resistant hose can be used under the 175℃ condition.
Lower temperature resistant can hose maintain its good flexibility under the -40℃ condition.
Food grade hose can be used for conveying various food.which meets the REACH standard&FDA standard.
SPECIFICATION | |||||
ID | OD | W.P | B.P | Length | |
inch | mm | mm | MPa | MPa | m |
1/4 | 6 | 11 | 8 | 24 | 100 |
5/16 | 8 | 13.5 | 8 | 24 | 100 |
3/8 | 9 | 15 | 8 | 24 | 100 |
1/2 | 12 | 18 | 6 | 18 | 100 |
5/8 | 15 | 22 | 6 | 18 | 100 |
3/4 | 19 | 26 | 6 | 18 | 50 |
1 | 25 | 32 | 6 | 18 | 50 |
1-1/4 | 32 | 40 | 5 | 16 | 50 |
1-1/2 | 38 | 47 | 5 | 16 | 50 |
2 | 50 | 61 | 5 | 16 | 50 |
2-1/2 | 64 | 78 | 4 | 14 | 40 |
3 | 75 | 90 | 4 | 14 | 20 |
3-1/2 | 90 | 106 | 4 | 14 | 20 |
4 | 100 | 116 | 4 | 14 | 20 |
5 | 127 | 141 | 2 | 10 | 20 |
6 | 152 | 166 | 2 | 10 | 20 |
8 | 200 | 220 | 2 | 10 | 10 |
