Blow-out preventer (BOP) systems requiring high pressure, high temperature and flame resistant control lines certified to API 16D. Armored hose assemblies with flame resistant cover withstand minimum 1300°F (+700°C) flame temperature at working pressure for 5 minutes without failure. BOP Control high pressure fire resistance and heat insulation hose assembly is mainly used for drilling blowout preventer hydraulic control and metallurgy.

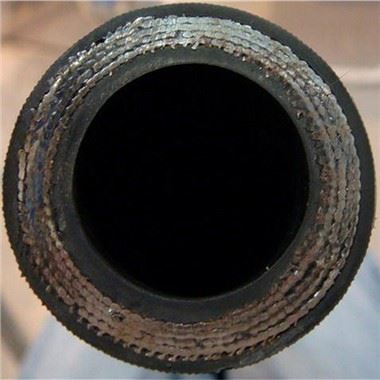

Construction:
Inner tube: Principally NBR constructed, featuring oil-resistant, abrasion-resistant, acid and alkali resistant.
Reinforcement: 2-8 layers spiraled by single high-strength steel wire and rubber as a binder to make the layers into one complete and sound construction.
Cover: Primarily CR fabricated, featuring oil-resistant, abrasion-resistant, weatherproof an anti-aging.
Cover: Stainless steel 304 armored
Working pressure: 5000psi to 15000psi
I.D. | O.D. | W.P. | P.P. | Min.B.R. |
mm | mm | psi | psi | mm |
6 | 26 | 5000 | 20000 | 150 |
10 | 29 | 5000 | 20000 | 180 |
12 | 32 | 5000 | 20000 | 230 |
20 | 40 | 5000 | 20000 | 300 |
25 | 47 | 5000 | 20000 | 340 |
32 | 54 | 5000 | 20000 | 460 |
38 | 66 | 5000 | 20000 | 560 |
51 | 80 | 5000 | 20000 | 700 |
