Construction:
Tube: Inner tube of oil resistant synthetic rubber.
Reinforcement: Steel wire reinforcement according to hose design (one or two braids)
Cover: An oil and weather resistant synthetic rubber.
Temperature: -40 °C to +100 °C(-40 ℉ to +212 ℉)
Introduction:

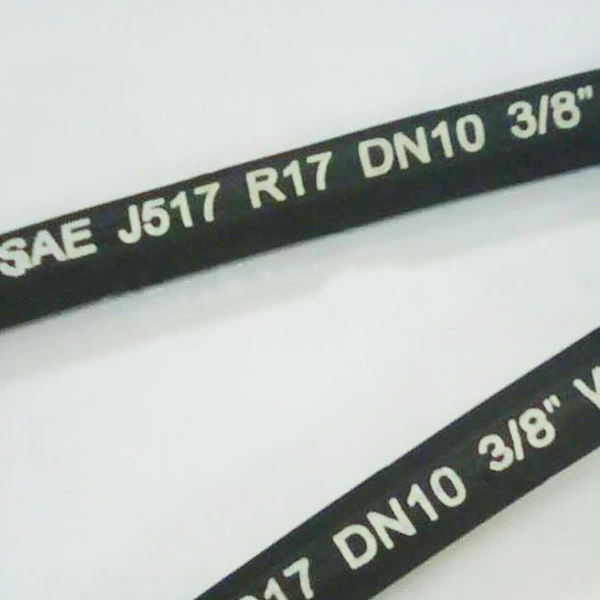

SAE 100R17 Compact hydraulic rubber hose has smaller bend radius and is ideal for tight routing where hose space is limited. It provides continuous working pressure to mining equipment, logging equipment, material handling and farm tractor.
It is consist of an inner tube of oil resistant synthetic rubber, steel wire reinforcement according to hose design (one or two braids), and an oil and weather resistant synthetic rubber cover. A ply or braid of suitable material may be used over the inner tube or over the wire reinforcement to anchor the synthetic rubber to the wire.
SAE 100R17 | ||||||||||||||
Type | Size | I.D | O.D | Max W.P | P.P | Min B.P | Min B.R | Weight | ||||||
| mm | inch | min | max | min | max | Mpa | Psi | Mpa | Psi | Mpa | Psi | mm | kg/m | |
| R17-04 | 6.3 | 1/4 | 6.2 | 7.0 | 11.0 | 13.2 | 21 | 3045 | 42 | 6090 | 84 | 12180 | 50 | 0.169 |
| R17-05 | 8 | 5/16 | 7.7 | 8.5 | 13.0 | 15.0 | 21 | 3045 | 42 | 6090 | 84 | 12180 | 55 | 0.210 |
| R17-06 | 10 | 3/8 | 9.3 | 10.1 | 15.0 | 17.0 | 21 | 3045 | 42 | 6090 | 84 | 12180 | 65 | 0.254 |
| R17-08 | 12.5 | 1/2 | 12.3 | 13.5 | 18.8 | 21.1 | 21 | 3045 | 42 | 6090 | 84 | 12180 | 90 | 0.466 |
| R17-10 | 16 | 5/8 | 15.5 | 16.7 | 23.6 | 25.9 | 21 | 3045 | 42 | 6090 | 84 | 12180 | 100 | 0.586 |
| R17-12 | 19 | 3/4 | 18.6 | 19.8 | 27.7 | 30.3 | 21 | 3045 | 42 | 6090 | 84 | 12180 | 120 | 0.749 |
| R17-16 | 25 | 1 | 25.0 | 26.4 | 35.6 | 35.6 | 21 | 3045 | 42 | 6090 | 84 | 12180 | 150 | 1.457 |
